1200W Craftstrom Plug-in Solar Kit
1200W Craftstrom Plug-in Solar Kit
Couldn't load pickup availability
Share

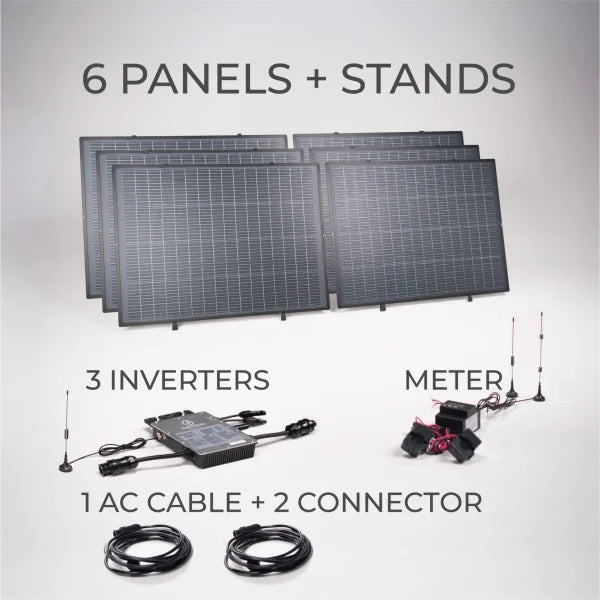

What's in the Box
6 x 200W bifacial semi-flexible solar panels (23.5% cell efficiency)
3 x 350W smart inverters, ETL-certified to UL 1741 and IEEE 1547
2 x Inverter Connector Cables
1 x Smart PowerMeter with CT sensors
Mounting hardware
AC cable (standard outlet connection)
App
Who This is For
The 1200W kit is a strong fit for apartments and smaller homes, or anyone who wants more offset to their electric bill than the 800W provides but doesn't have space for the larger 8- or 10-panel systems.
How it Works
The system plugs into a standard outlet. The included Smart PowerMeter attaches to your electrical panel and monitors your home's real-time power consumption.
The system is designed to stay within your home's own consumption. The inverters adjust output every 0.1 seconds so the system only produces what your home is already using.
No power flows back to the grid, so your setup is effectively invisible to the utility. That means no interconnection agreement required with your utility.
(Regulations on plug-in solar vary by state and utility; check your local rules before installing.)
What it Powers
At 1,200 watts, you're offsetting more than baseload. This system can cover a full-size refrigerator, lighting, device charging, a chest freezer, and still have capacity left over for a TV or small window AC unit running part of the day.
Annual production of roughly 2,100–2,400 kWh is typical depending on your location and sun exposure.
The Tech Specs
SOLAR PANELS
Architecture
80-cell | Bifacial | Semi-Flexible
Dimensions & Weight
923 x 1170 x 3.8 mm
36 x 46 x 0.15 in.
4 kg
8.8 lbs
TECHNICAL SPECIFICATIONS
Output Parameters
Vmp: 36.48V
Voc: 42.88V
Imp: 5.49A
Cell Efficiency: 23.5%
Max System Voltage: DC 1000V
Certifications
CE | RoHS
Materials
Up to 11 layers, incl. Mono-crystalline PV cells | ETFE – Cover Sheet | EVA | PET
WARRANTY
Warranty
10 years
SOLAR INVERTERS
Architecture
Hedy 350W
120V/230V Auto-Switch
High Voltage Version
Dimensions & Weight
165 x 176 x 38 mm | 6.5 x 7 x 1.5 in.
0.82 kg | 1.8 lbs.
TECHNICAL PARAMETERS
Input Parameters
Max Input Power: 420W
Voc: 60-100V DC
Vop: 55-100V
MPPT Vdc: 65-100V
Isc: 7A
Imp: 6.3A
Output Parameters
@ 120V
Ppeak: 350W
Ipeak: 2.91A
Vac: 80-160V
@ 230V
Ppeak: 350W
Ipeak: 1.14A
Vac: 180-280V
@ 240V
Ppeak: 350W
Ipeak: 1.52A
Vac: 180-280V
Certifications
ETL (UL) | VDE | CE | FCC
Materials
Body: Aluminium (Aluminum)
WARRANTY
Warranty
10 years
POWERMETER
Architecture
External Sensors
Up to 3 x clamp-on CT sensors and breaker-connection wires.
Internal Sensors
For direct-wiring into breaker slots and installation on DIN-rail.
Dimensions & Weight
90 x 72 x 65 mm | 3.5 x 2.8 x 2.6 in.
0.3 kg | 0.7 lbs
TECHNICAL PARAMETERS
Input Parameters
Reference Voltages
3×100V
3×380V
3×57.7/100V
3×220/380V
Input Currents
3×1(6)A
3×10(80)A
Accuracy
+/- 0.2%
Grid Frequency
45 – 65 Hz (+/- 0.2%)
Measurements
Voltages (V) | Currents (A) | Frequencies (Hz) | THD | Total Energy Used (kWh) | Power (W) | Apparent Power (VA) | Power Factor (PF)
Certifications
ETL | CE | RoHS | FCC
