Craftstrom

1600W Craftstrom Plug-in Solar Kit

1600W Craftstrom Plug-in Solar Kit

Regular price $4,088.00 USD
Regular price Sale price $4,088.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
View full details

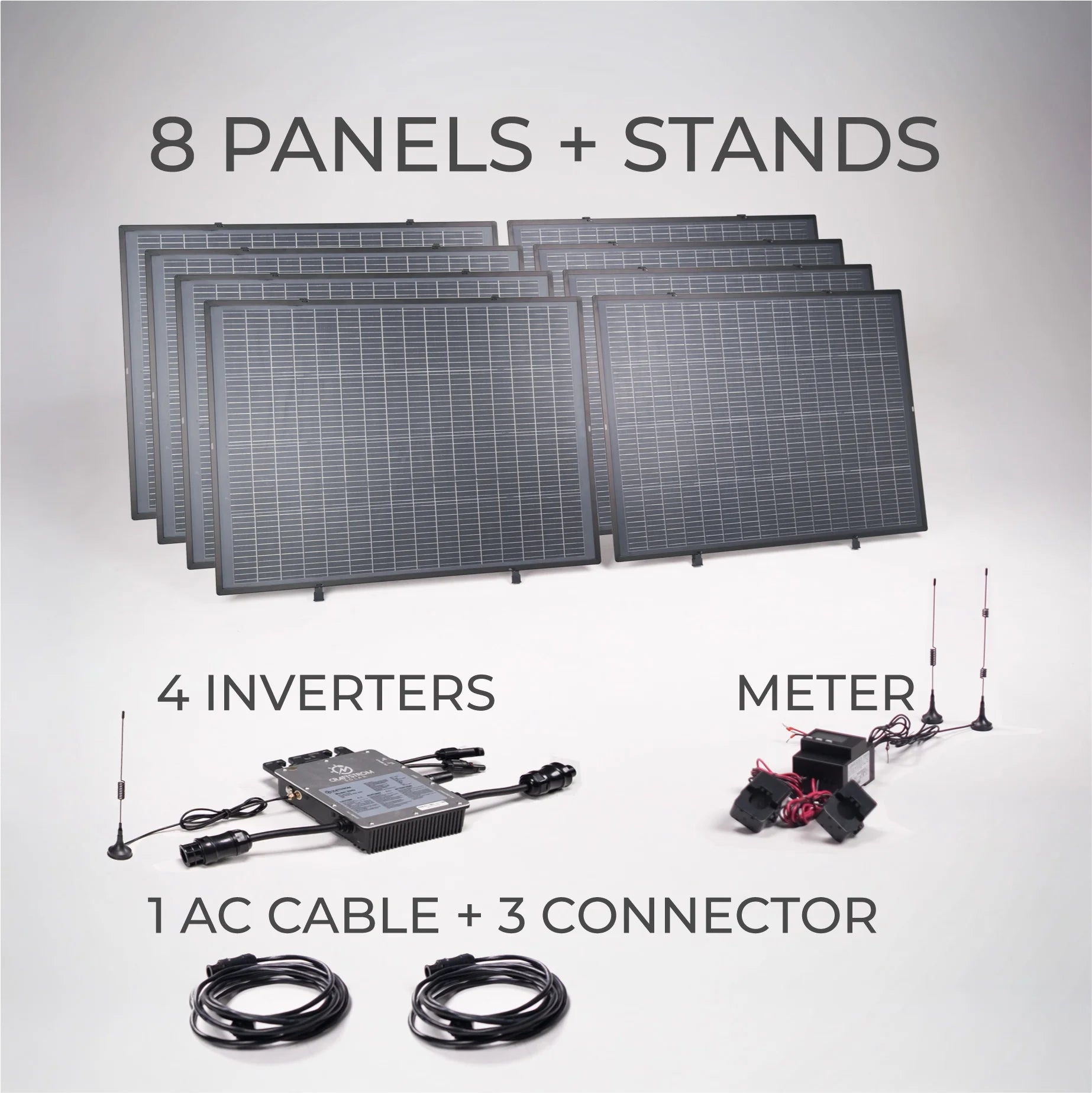

What's in the Box

8 x 200W bifacial semi-flexible solar panels (23.5% cell efficiency)
4 x 350W smart inverters, ETL-certified to UL 1741 and IEEE 1547
3 x Inverter Connector Cables
1 x Smart PowerMeter with CT sensors
Mounting hardware

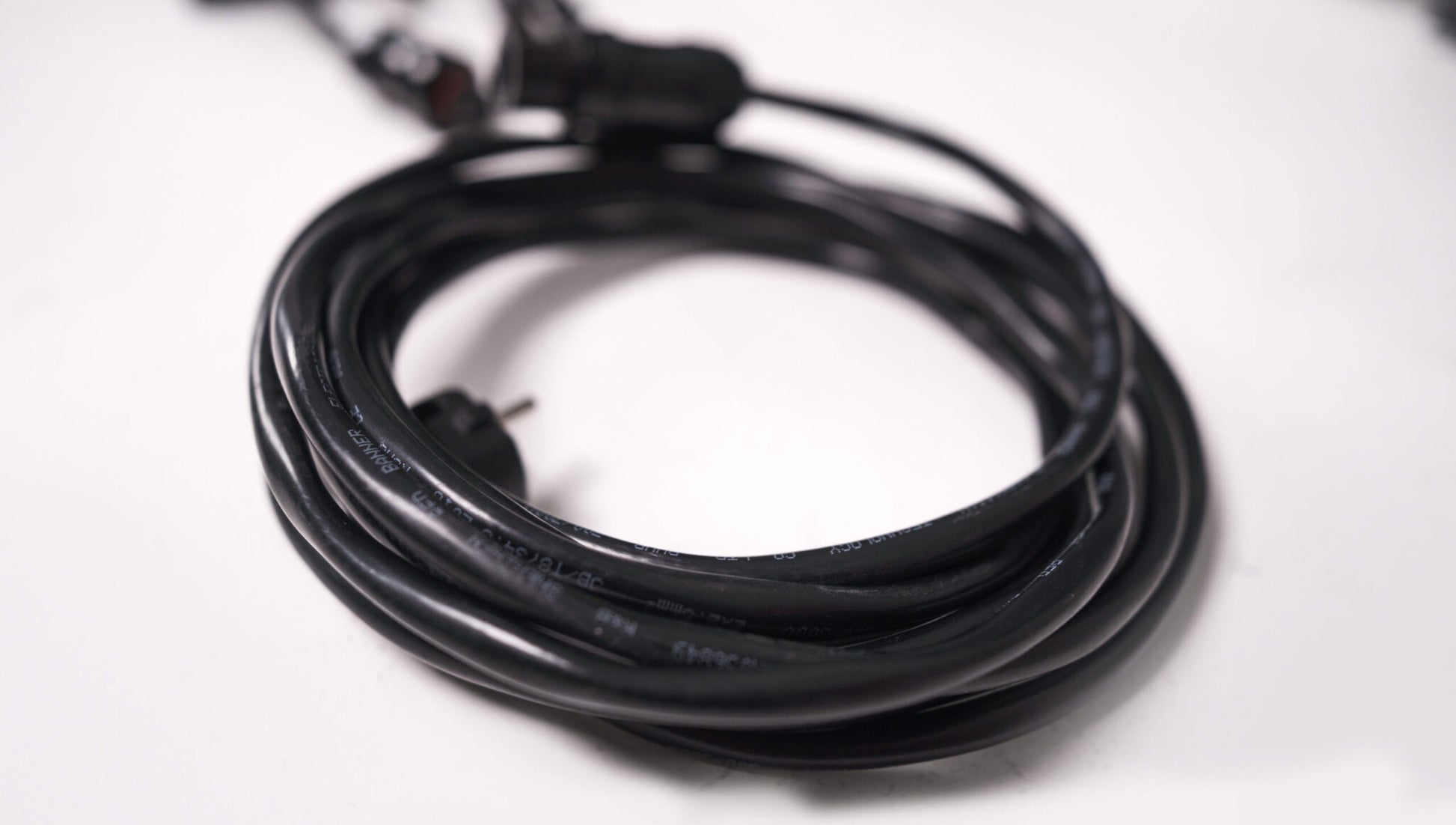

AC cable (standard outlet connection)

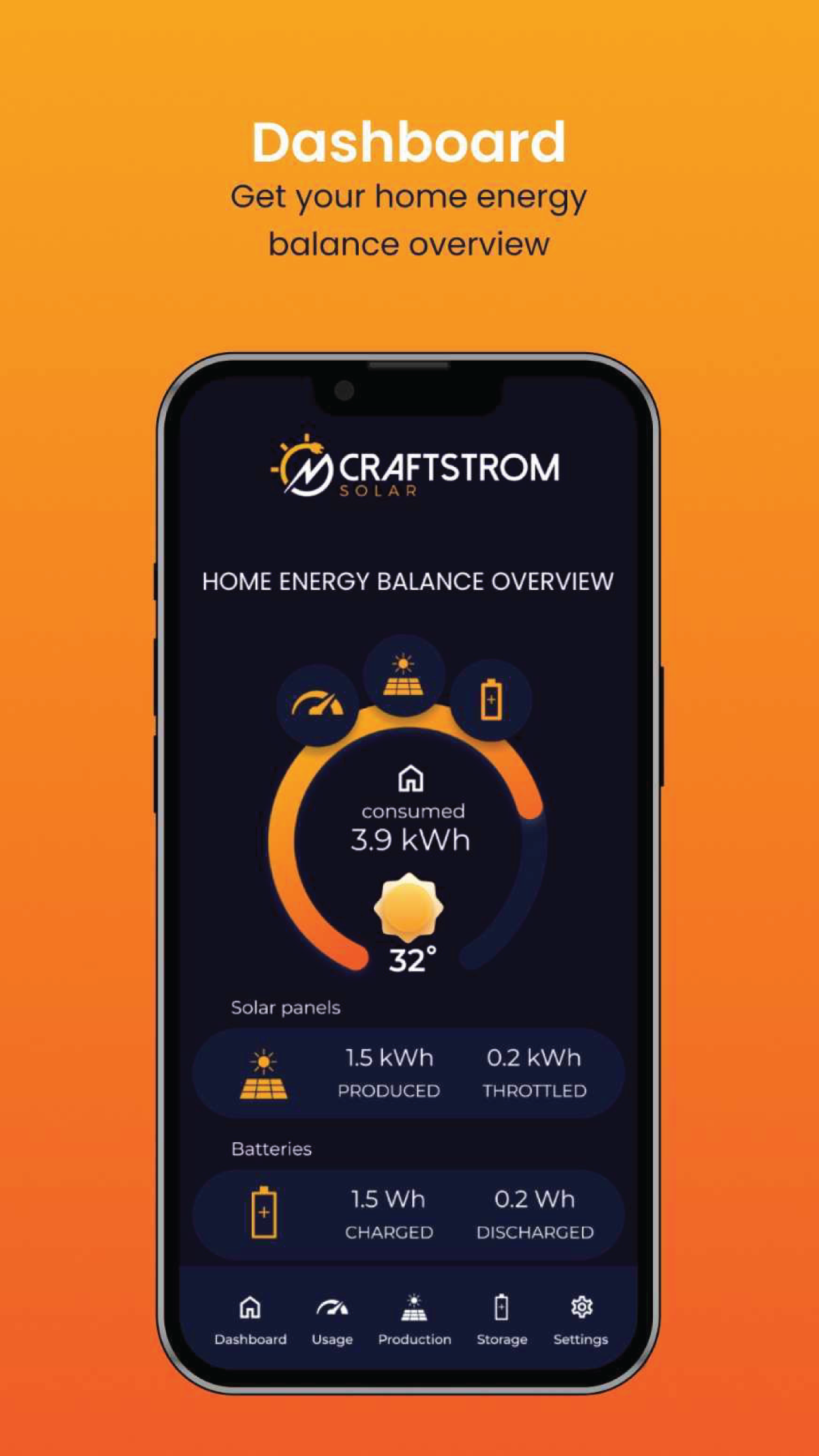

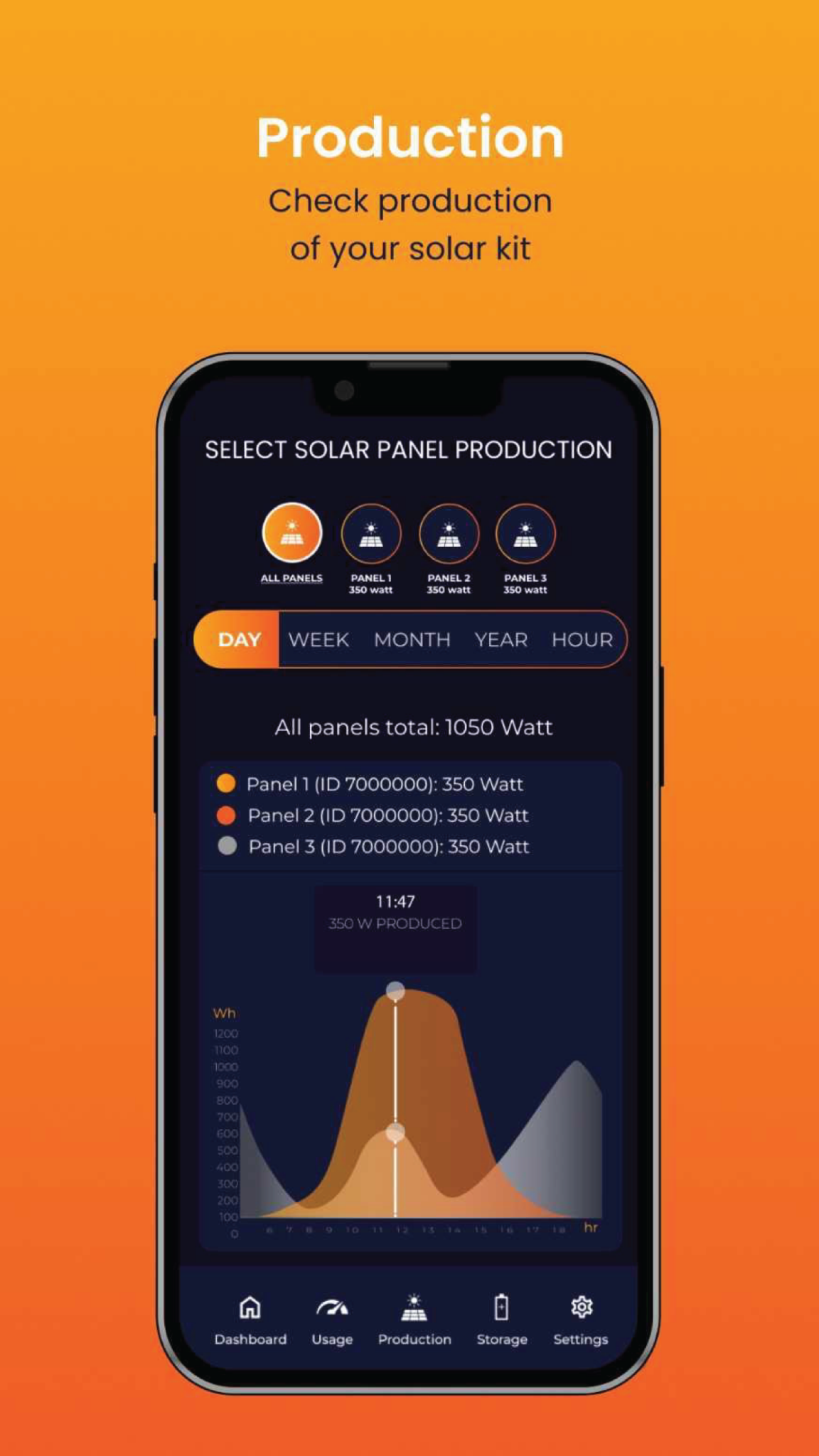

App

Who This is For

The 1600W kit is for renters and homeowners who want solar to move the needle on their electricity bill. It's a bigger footprint than the 1200W in terms of panel space, but the economics get meaningfully better at this scale. Consider pairing with a Craftstrom smart solar battery if you want to store daytime production for evening use.

How it Works

The system plugs into a standard outlet. The included Smart PowerMeter attaches to your electrical panel and monitors your home's real-time power consumption.

The system is designed to stay within your home's own consumption. The inverters adjust output every 0.1 seconds so the system only produces what your home is already using.

No power flows back to the grid, so your setup is effectively invisible to the utility. That means no interconnection agreement required with your utility.

(Regulations on plug-in solar vary by state and utility; check your local rules before installing.)

What it Powers

A 1,600W system running in good sun can produce roughly 2,600–2,900 kWh annually, depending on location and orientation. That covers a full refrigerator, freezer, lighting, device charging, and a window AC unit or space heater running several hours a day. For many households, it handles 20–35% of total electricity use.

The Tech Specs

SOLAR PANELS


Architecture

80-cell | Bifacial | Semi-Flexible

Dimensions & Weight

923 x 1170 x 3.8 mm
36 x 46 x 0.15 in.

4 kg
8.8 lbs

TECHNICAL SPECIFICATIONS

Output Parameters

Vmp:  36.48V
Voc: 42.88V
Imp: 5.49A

Cell Efficiency: 23.5%

Max System Voltage: DC 1000V

Certifications

CE | RoHS

Materials

Up to 11 layers, incl. Mono-crystalline PV cells | ETFE – Cover Sheet | EVA | PET

WARRANTY

Warranty

10 years

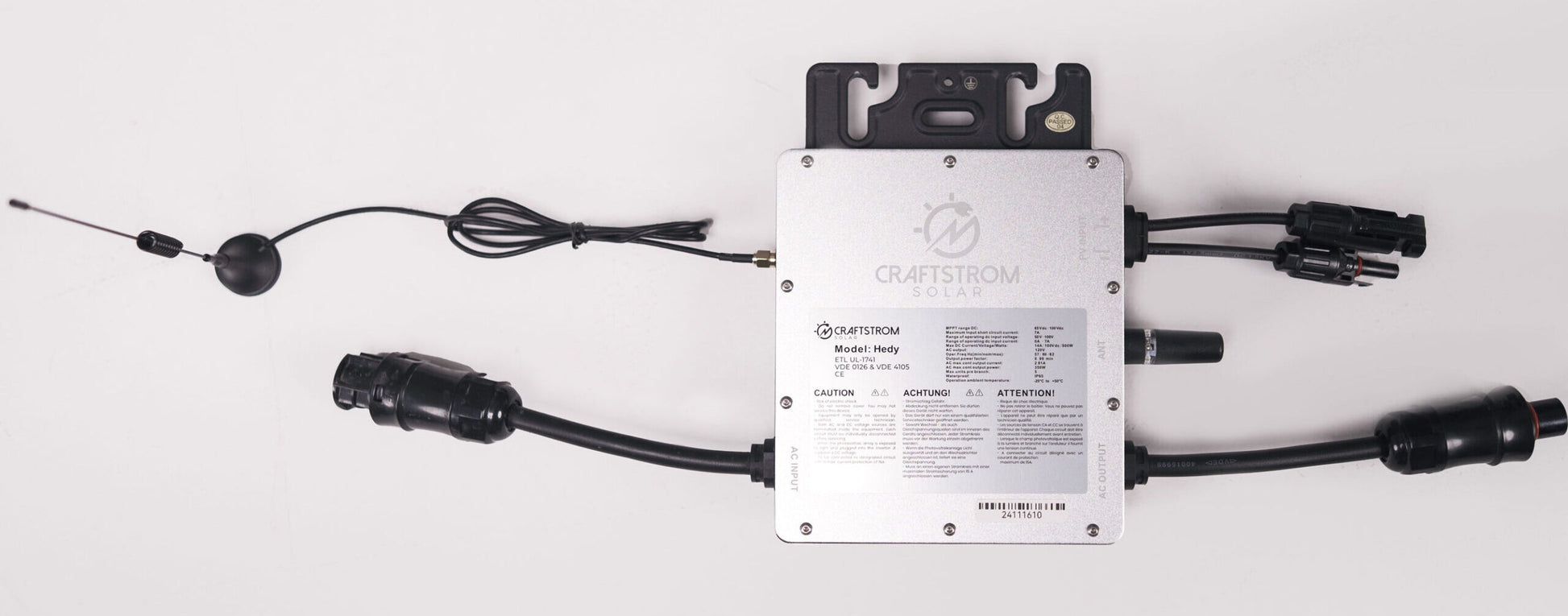

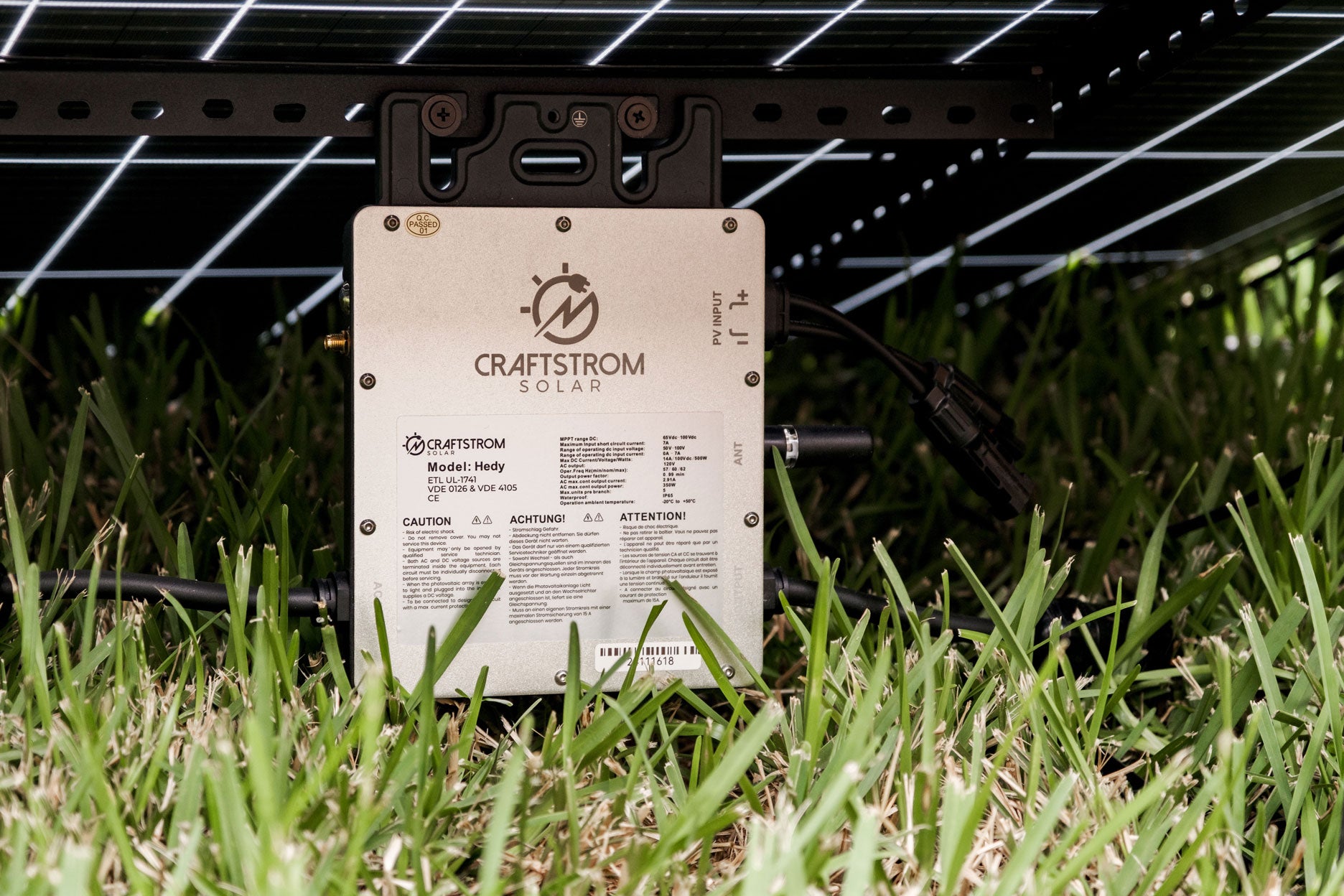

SOLAR INVERTERS

Architecture

Hedy 350W
120V/230V Auto-Switch
High Voltage Version

Dimensions & Weight

165 x 176 x 38 mm | 6.5 x 7 x 1.5 in.

0.82 kg | 1.8 lbs.

TECHNICAL PARAMETERS

Input Parameters

Max Input Power: 420W
Voc: 60-100V DC
Vop: 55-100V
MPPT Vdc: 65-100V
Isc: 7A
Imp: 6.3A

Output Parameters

@ 120V

Ppeak: 350W
Ipeak: 2.91A
Vac: 80-160V

@ 230V

Ppeak: 350W
Ipeak: 1.14A
Vac: 180-280V

@ 240V

Ppeak: 350W
Ipeak: 1.52A
Vac: 180-280V

Certifications

ETL (UL) | VDE | CE | FCC

Materials

Body: Aluminium (Aluminum)

WARRANTY

Warranty

10 years

POWERMETER

Architecture

External Sensors

Up to 3 x clamp-on CT sensors and breaker-connection wires.

Internal Sensors

For direct-wiring into breaker slots and installation on DIN-rail.

Dimensions & Weight

90 x 72 x 65 mm | 3.5 x 2.8 x 2.6 in.

0.3 kg | 0.7 lbs

TECHNICAL PARAMETERS

Input Parameters

Reference Voltages

3×100V
3×380V
3×57.7/100V
3×220/380V

Input Currents

3×1(6)A
3×10(80)A

Accuracy

+/- 0.2%

Grid Frequency

45 – 65 Hz (+/- 0.2%)

Measurements

Voltages (V) | Currents (A) | Frequencies (Hz) | THD | Total Energy Used (kWh) | Power (W) | Apparent Power (VA) | Power Factor (PF)

Certifications

ETL | CE | RoHS | FCC

WARRANTY & MANUAL

Warranty

10 years
